Well Probes – Water Level Measuring Instruments

$544.00$3,000.00

Product Details

“Monitor your groundwater resources”

  • Level Measurement
  • Drawdown tests
  • Recovery rate
  • Chart trends

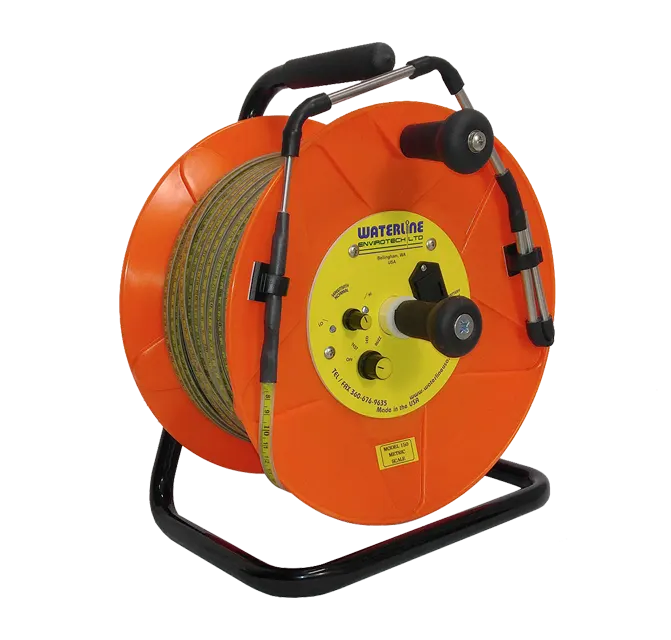

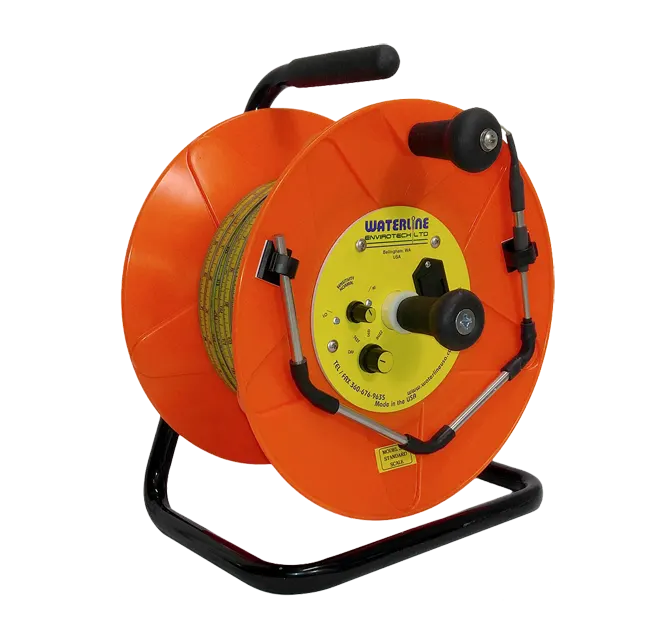

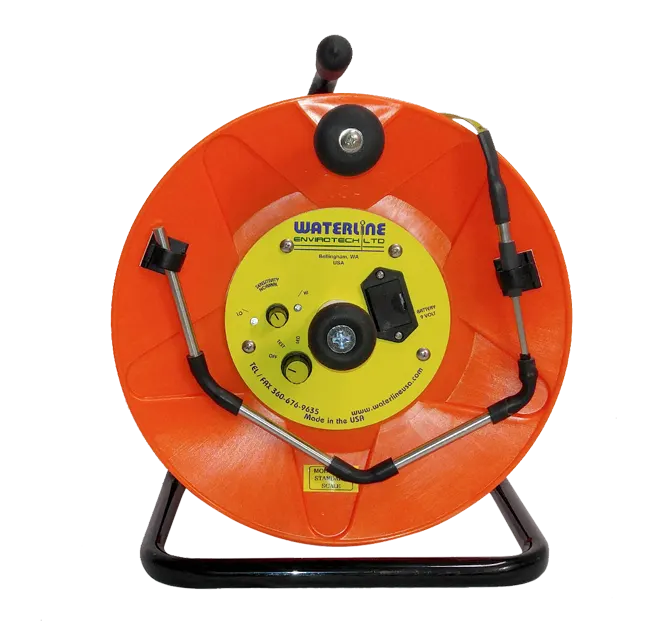

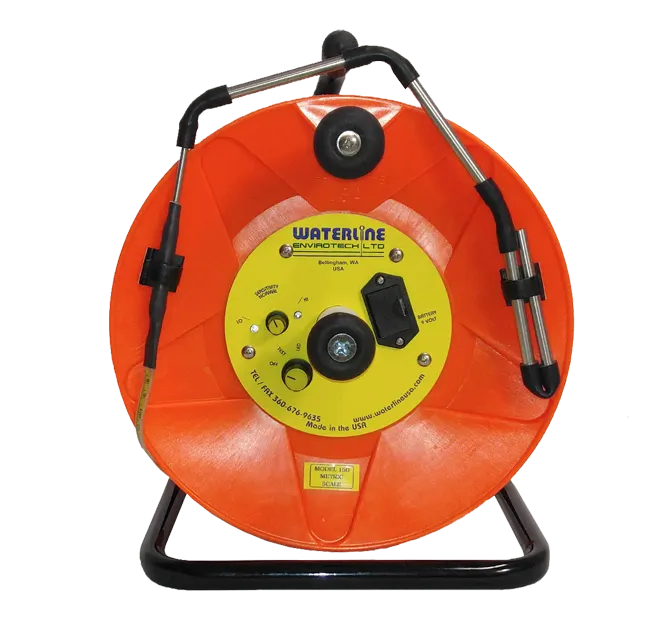

Strong, flexible, 3/8″ wide tape, stainless steel conductors. Marked in standard scale (feet, inches, and 1/8th of an inch) OR metric scale (meters, centimeters, and millimeters).

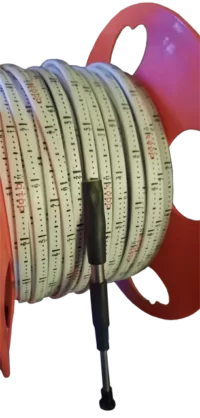

Light duty tape is marked in engineering scale (feet & tenths).

Click here for Operating Instructions

Features

  • Selectable Indication – Audible buzzer or visual ultrabrite LEDs.
  • Thin probe sensor and segmented Stainless Steel weights – Easy to access, even through a 1/2″ bolt hole.
  • Sensitivity switch – Variable settings for true reading in differing water and well conditions.
  • Highly Sensitive Probe – Indicates to within a fraction of an inch, yet is unaffected by cascading water.
  • Completely Self-Contained – No external power or ground required. Uses one 9-volt battery.
  • Complete and ready to use

Probe:
A thin, stainless steel, and highly sensitive sensor, with removeable segmented weights, which allows easy access, even through a ½ inch bolt hole, and indicating water within a fraction of an inch.
The probe is the same size on the standard or light duty tape.

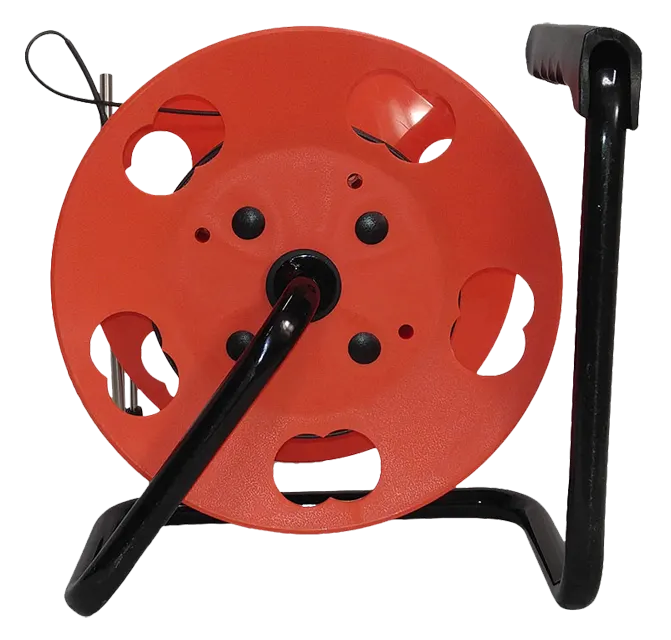

Reel:
Free standing durable plastic reel in various sizes with central brake system on strong metal frame.
1000 foot and larger sizes have metal reel.

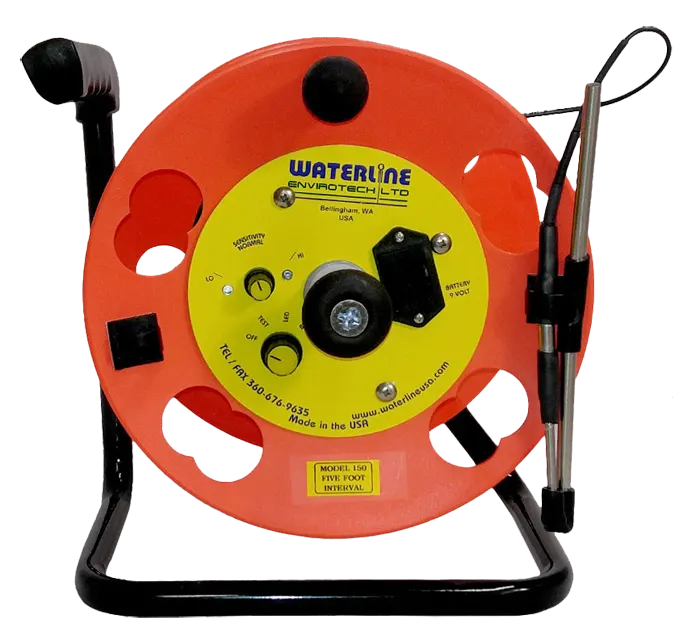

Electronics which consists of:

A selector switch with 4 positions:
Off – when not in use to avoid draining the battery.
Test – to check battery, light and buzzer will operate together.
LED – for visual signal, ultra bright LEDs light up when probe reaches water.
Buzz – for audible signal, buzzer sounds when probe reaches water.

A sensitivity switch – adjusts the probes sensitivity in individual wells and helps avoid false readings in cascading water.

A battery drawer – for one 9 volt battery.  Easy access for battery change.
