Well Sounder 2010 PRO


Product Details

Sonic Water Level Measurement

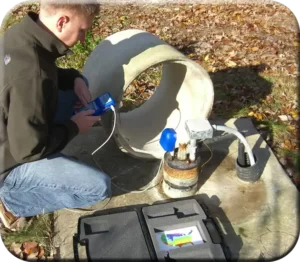

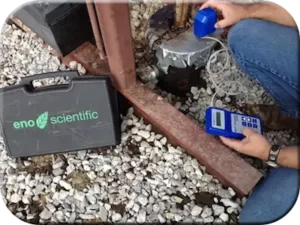

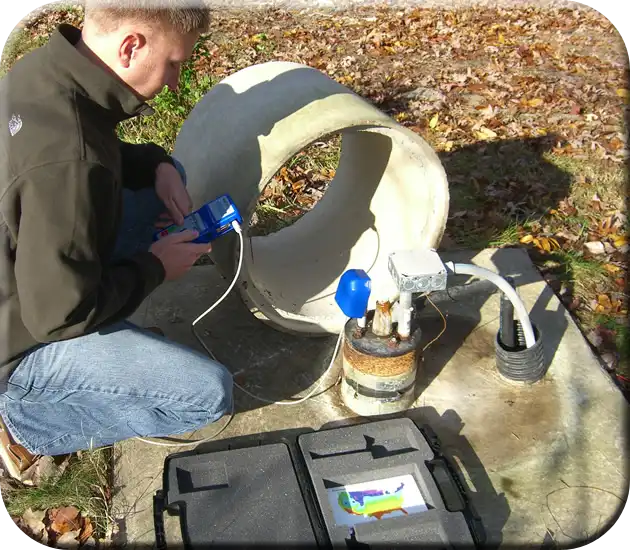

Well Sounder In Use

The Well Sounder 2010 PRO is the latest sonic water level meter, designed and manufactured by Eno Scientific, to measure static water level in wells by using sound waves to measure the distance from the top of the well to the water level.  This portable handheld meter prevents well contamination and clean up by eliminating the need to lower anything into the well.  Simply place the probe into a well cap vent opening and turn the unit on. Within seconds the static water level measurement is displayed.  Distance reading mode powers up first, but with the press of a button, the simple user interface, yet powerful internal processor, calculates and displays a variety of other information. Including the total water in the well, the rate of change, temperature, and battery voltage.

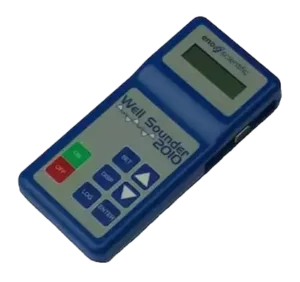

well sounder handheld control

A built-in data logger can record up to 25 million time-stamped readings along with well ID, temperature and other associated measurements.  It can be set to take automatic measurements from 1 to 60 minute intervals or manually by pressing the log button. The data can be reviewed on the screen or downloaded to a computer using the serial RS232 port or the included USB cable for analysis.  Stored data is formatted for USB access in simple Windows compatible text files sorted by well ID.   The data can be easily copied from the well sounder onto the computer then opened with common programs such as MS Excel, MS Word, or MS Notepad.

The Well Sounder 2010 PRO can accept input from most standard pulsed flow meters, with an optional adapter, and will measure the total water pumped and record it with the logged data.  Using this information, the well sounder calculates and displays; flow rate and the rate of recovery in the well, even while pumping. This allows the user to perform unsupervised drawdown testing. Set up the test, turn on the logger, and return when the test is complete. If the data won’t be downloaded immediately, take advantage of the unit’s ability to identify each well with an ID number to keep the data organized.

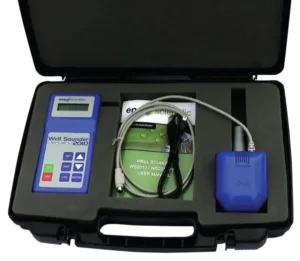

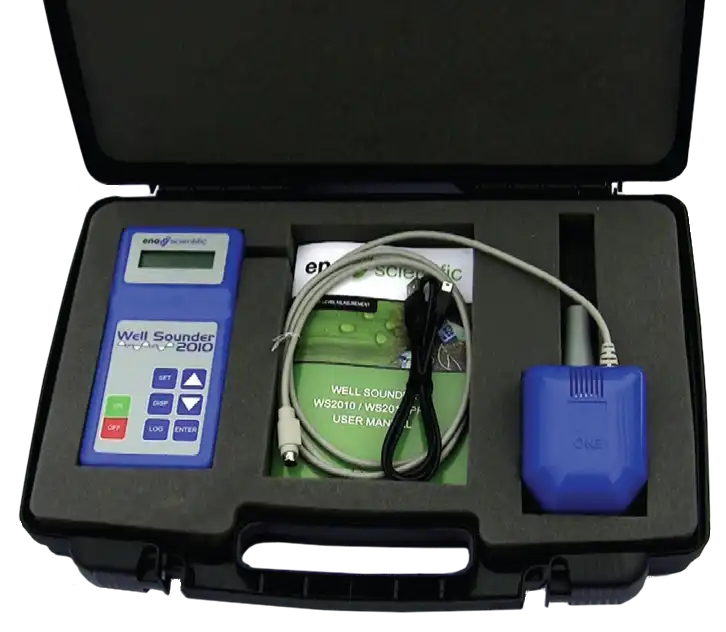

well sounder 2010 pro kit

The Well Sounder 2010 Pro kit comes complete with everything necessary to measure and record well static water levels, including batteries and a rugged carrying case.

Some of the features included with this advanced instrument are the power save mode – which puts the unit to sleep between measurements and turns off the power after a selected period of inactivity.  If there are known defects in the well, such as a rock fissure, set the measurement range min and max to ignore the interference.  Transmit data in real time to a remote readout or logging device by using the multipurpose bidirectional serial communications port, or allow remote programming of the well sounder.

Key Features:
  • Automatic temperature compensation
  • Calculates drawdown and recovery rates
  • Immediate data capture
  • Up to 25 million data points in non-volatile memory
  • Real time clock / calendar to time stamp logged data
  • USB port for data download
  • RS232 port for remote communication
  • Powered by 6 AA batteries for up to 500 hrs of use
  • Jack for optional external power
  • Auto off function
  • Flowmeter input (with optional adapter)
Included In Kit:
  • Well Sounder 2010 PRO meter unit
  • Remote probe
  • User Manual
  • Quick Start Guide
  • US Groundwater Temperature chart
  • USB cable
  • Heavy duty carrying case

Units – English (decimal ft or ft & in), Metric
Resolution -0.05 ft (1 cm)
Accuracy -0.1 ft (3 cm)
Range – 9 to 2000 ft (3 to 600M)
Update time –  1 sec @ 500ft (150M), – 4 sec @2000ft (600M)
Time to first fix –  4 sec @ 500ft (150M)

Memory – nonvolatile flash memory for 13,000 data points in addition to calibration and user data
Extended Memory – 2GB nonvolatile flash memory for 25 million data points in a Windows compatible file system,  USB connection appears as a mass storage device showing ASCII data files sorted by well ID
Automatic Logging Rates – 1 to 60 minutes per sample
Manual Logging – on key press

Internal Power – 6 AA Alkaline batteries
Battery life – up to 80 hours continuous
Up to 21 days in power saver mode
External Power (optional) – 6.5 to 12VDC at 80ma max
Do not exceed 16V
Connector 5.5mm x 2.1mm center post positive
Real time clock – Li Ion 3V battery CR2032

Temperature -10 to 110 degrees F (-20 to 45 degrees C)
Humidity – 10 to 90% non-condensing

Meter Dimensions – 3.5 x 7.5 x 1.5” (19 x 9 x 4cm)
Meter weight-14 oz (390g)
Probe Dimensions – 6 x 3 x 3″ (16 x 8 x7cm)
Probe Tip Diameter – 5/8″ (1.7cm)
Cable length – 70″ (1.8 M)
Probe weight – 13 oz (355g)
Shipping Dimensions – 13 x 17 x 5″ (33 x 44 x 13cm)
Weight – 5lb (2.3Kg)

Display – 2×16 character LCD
Temperature compensation – in probe

Acoustic probe
Serial port – bi-directional 300 – 57600 baud, 8 data bits, one stop bit
USB port for file system access
Flow meter input (with adapter) – pulse counting
External Temperature sensor (with adapter)
