Safely move your casing from support truck to borehole with ease.
Choose from the variety of style steel casing elevators (pipe elevators) shown below. Each has its own unique characteristics to fit your specific needs.

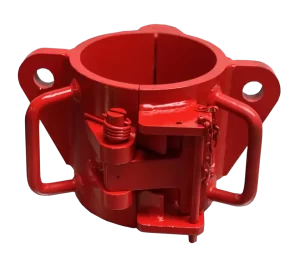

AWDS Casing Elevators
| Size | Cap (tons) | Wgt (lbs.) | Sling Size |
|---|---|---|---|
| 6 5/8" | 20 | 35 | 3/4" |
| 8 5/8" | 40 | 50 | 3/4" |
| 10 3/4" | 40 | 95 | 7/8" |
| 12 3/4" | 40 | 110 | 7/8" |
EZ Lift Elevators
These Steel casing elevators (pipe elevators) provide a positive grip onto the casing without the need to weld on tabs. The carbide teeth dig into the casing on two sides. The entire process is faster because you don’t have to weld on and then remove tabs. Slings are sold separately.
Available for 6″ and 8″ casing.
VE Series Ambidextrous Elevators
For efficiency, safety, and dependability, choose our high-grade steel elevators (pipe elevators). These elevators are specially designed from years of experienced engineering for casing and turbine pump pulling and setting. Each elevator has a positive spring-loaded “pop together” latch with safety shield to prevent accidental line interference. Sizes are available for all casing pipe. We also take custom orders for your specific needs. Slings are sold separately.
VE Series Elevators are ambidextrous (open to the right or left) pipe handling elevators. Available sizes range from 1 1/4″ – 24″. Custom sizes available. Load test certifications are also available upon request for an additional fee.
| Size | Cap (tons) | Wgt (lbs.) | Dimensions (inches) F-B x S-S | Sling Size |
|---|---|---|---|---|
| 1 1/4" | 20 | 16 | 8 x 12 | 3/4" |
| 1 1/2" | 20 | 18 | 8 x 12 | 3/4" |
| 2 7/8" | 20 | 20 | 8 x 12 | 3/4" |
| 3 1/2" | 20 | 25 | 8 x 12 | 3/4" |
| 4 1/2" | 20 | 30 | 8 x 12 | 3/4" |
| 5 1/2" | 20 | 35 | 10 x 14 | 3/4" |
| 6 5/8" | 20 | 40 | 11 x 15 | 3/4" |
| 7" | 20 | 45 | 12 x 16 | 3/4" |
| 8 5/8" | 40 | 50 | 15 x 17 | 7/8" |
| 9 5/8" | 40 | 55 | 16 x 18 | 7/8" |
| 10 3/4" | 40 | 60 | 15 x 19 | 7/8" |
| 12 3/4" | 40 | 65 | 19 x 21 | 7/8" |
| 13 3/8" | 40 | 80 | 19 x 23 | 7/8" |
| 14" | 40 | 100 | 21 x 23 | 7/8" |
| 16" | 40 | 115 | 23 x 25 | 7/8" |
| 17 3/4" | 40 | 120 | 25 x 25 | 7/8" |
| 18" | 40 | 130 | 26 x 25 | 7/8" |
| 18 5/8" | 40 | 140 | 26 x 25 | 7/8" |
| 20" | 40 | 150 | 28 x 30 | 7/8" |
| 22" | 40 | 160 | 30 x 32 | 7/8" |
| 24" | 40 | 170 | 32 x 34 | 7/8" |
Clamp On Lifters
These clamp on style casing lifters come in pairs and have a lifting capacity of 4.5 tons. They are able to accommodate pipe/casing of up to 0.500″ wall thickness.
Each pair consists of: Clamps and clevises. Slings are sold separately.
Bale Style Elevators
These casing elevators (pipe elevators) are easy to use after you weld tabs onto the casing. Flip the retainer out of the way and swing the slip open. Close around the casing and flip the retainer back into position.
Bales not included on 10″, 12″, or 14″ elevators.
*** Load Certified ***
Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
1" | 5/8" | 3" | 12 3/4" | 7" | 1 7/16" | 7 1/2" |
1 1/4" | 5/8" | 3" | 12 3/4" | 7" | 1 3/4" | 8" |
1 1/2" | 5/8" | 3" | 12 3/4" | 7" | 2" | 8 1/4" |
2" | 5/8" | 3" | 12 3/4" | 7" | 2 1/2" | 9 1/4" |
2 1/2" | 3/4" | 3" | 12 1/4" | 6 1/2" | 3" | 9 1/2" |
3" | 3/4" | 3" | 12 1/4" | 6 1/2" | 3 5/8" | 11" |
3 1/2" | 3/4" | 3" | 12 1/4" | 6 1/2" | 4 1/8" | 11 5/8" |
4" | 3/4" | 3" | 12 1/4" | 6" | 4 5/8" | 12 3/4" |
4 1/2" | 3/4" | 3" | 12 1/2" | 6" | 5 1/8" | 13" |
5" | 3/4" | 3" | 12 1/2" | 6" | 5 11/16" | 13 1/2" |
6" | 7/8" | 3" | 18 1/2" | 11" | 8 3/8" | 14 1/2" |
8" | 1 1/4" | 3" | 21 1/2" | 11 1/2" | 8 3/4" | 18 1/4" |
10" | - | - | - | - | 10 7/8" | 21 1/4" |
12" | - | - | - | - | 12 7/8" | 23 1/2" |
14" | - | - | - | - | 14 1/8" | 29 1/2" |
