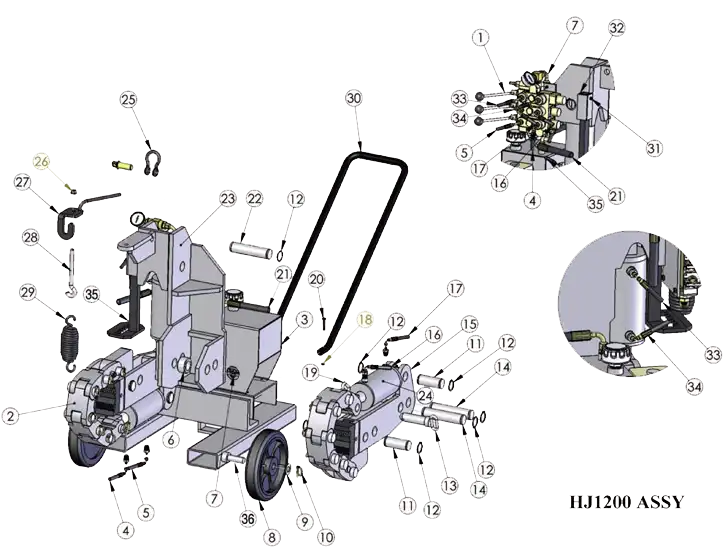

Hydro Jaw 1200 Assembly

Item Number	Part Number	Description	Quantity
1	See Below	Valve Housing Assembly	1
2	See Below	Thrust Cylinder Arm Assembly	1
3	See Below	HJ1200 Pump and Engine Assembly	1
4	HJ131	Front Hose 46" 4G 1-Straight and 1-90 Degree	1
5	HJ130	Back Hose 42" 4G 1-Straight and 1-90 Degree	1
6	HJ1200-18	Stationary Arm Spacer Bushing	1
7	HJ134	Supply Hose 47" 8G with 2-90 Degree	1
8	HJ126	HJ1200 Wheel	2
9	HJ1200-19	3/4" Flat Washer	2
10	HJ1200-15	1.5" Lynch Pin Zinc-Plated	18
11	HJ125	Cylinder and L-Link Pins	5
12	HJ1200-17	Snap Ring	16
13	HJ122	Handle Link Pins	2
14	HJ124	Stationary Arm Pins	2
15	HJ1200-20	Stationary Five-Hole Arms	2
16	HJ129	Front Hose 31.5" 4G 1-Straight and 1-90 Degree	1
17	HJ128	Back Hose 28.5" 4G 1-Straight and 1-90 Degree	1
18	HJ1200-21	5/16-18 UNC 2" Lock Nut	2
19	HJ111	Link with Handle	2
20	HJ1200-22	5/16-18 UNC 2" Long HHB	2
21	HJ135	Return Hose 19.5" 8G 2-45 Degree	1
22	HJ123	Thrust Cylinder Pin	1
23	HJ1200-23	HJ1200 Body Weldment Assembly	1
24	HJ116	Chain Cylinder	1
25	HJ1200-24	Lifting Clevis	1
26	HJ1200-26	1/2-13 UNC Locking Nut	1
27	HJ1200-27	J" Hook Chain Bracket	1
28	HJ1200-28	1/2" x 8" Long Eye Bolt	1
29	HJ127	Plow Spring	1
30	HJ1200-29	Handle	1
31	HJ1200-30	5/16-18 UNC-2L HHB	2
32	HJ1200-31	5/16-18 UNC Lock Nut	2
33	HJ132	Top Hose 19" 4G 1-Straight and 1-90 Degree	1
34	HJ133	Bottom Hose 22" 1-Straight and 1-90 Degree	1

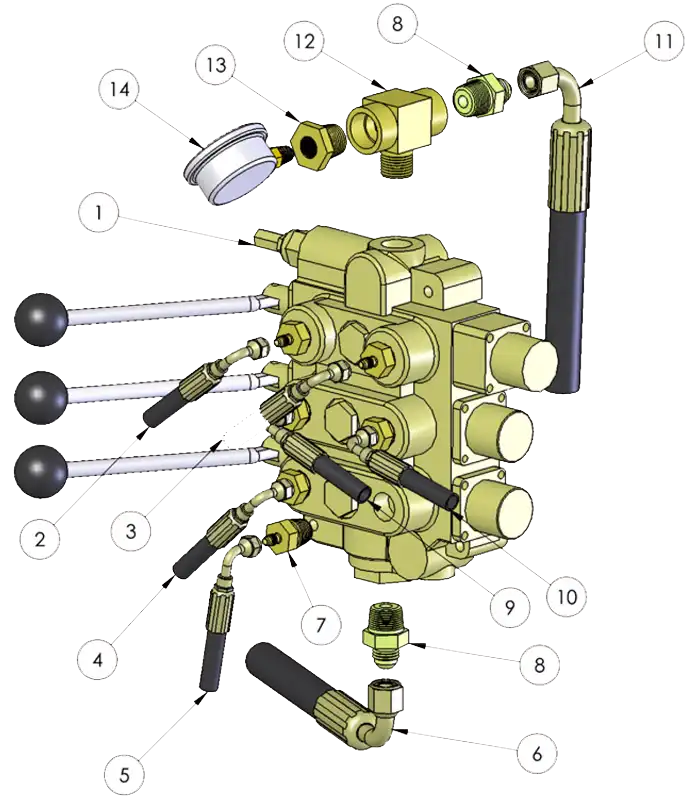

Valve Housing Assembly

Item Number	Part Number	Description	Quantity
1	HJP-HJ2412-HYD-VAL-3SP	Hydraulic Valve, 3 Spool, L&S	1
2	HJP-HJ12-HOSE-19	Hose, 19"	1
3	HJP-HJ12-HOSE-22	Hose, 22"	1
4	HJP-HJ12-HOSE-42	Hose, 42"	1
5	HJP-HJ12-HOSE-46	Hose, 46"	1
6	HJP-HJ12-HOSE-47	Hose, 47"	1
7	XXXXXX	1/2" NPT x 1/4" 37 Degree Flare Fitting	6
8	XXXXXX	Hex Nipple Fitting 3/8" NPT x 1/2" 37 Degree Flare	2
9	HJP-HJ12-HOSE-28.5	Hose, 28.5"	1
10	HJP-HJ12-HOSE-31.5	Hose, 31.5"	1
11	HJP-HJ12-HOSE-19.5	Hose, 19.5"	1
12	XXXXXX	Branch Tee 3/4" NPT	1
13	XXXXXX	Bushing Reducer 3/4" NPT to 1/4" NPT	1
14	HJP-HJ2412-GAG-PSI-0-5000	0-5000 PSI Hydro Jaw Gauge	1

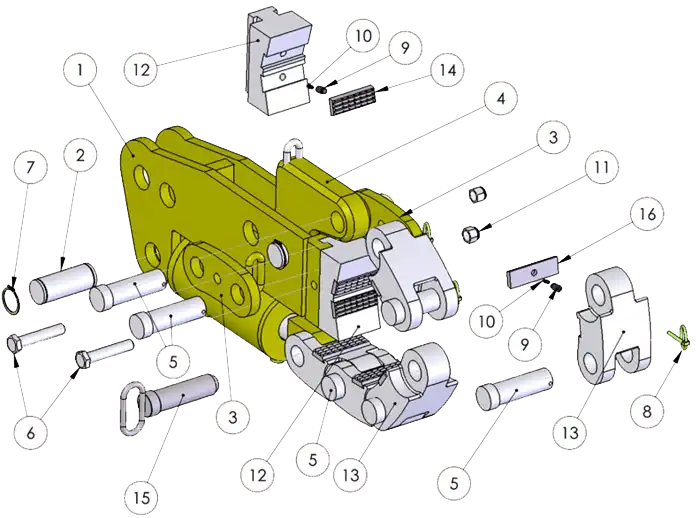

Item Number	Part Number	Description	Quantity
1	HJP-HJ12-ARM-ASSY	HJ1200 Arm Assembly	1
1-1	HJP-HJ12-FIX-ARM-4HL-ASSY	HJ1200 Fixed Arm 4-hole Assembly	1
1-2	HJP-HJ12-HJ12-THR-ARM-5HL-ASSY	HJ1200 Thrust Arm 5-hole Assembly	1
2	HJP-HJ12-CYL-L-LNK-MNT-PIN	HJ1200 Cylinder Link Mounting Pin	5
3	HJP-HJ12-SRT-LNK	HJ1200 Starter Link	2
4	HJP-HJ12-L-LNK	HJ1200 L-Link	2
5	HJP-HJ2412-LNK-PIN	HJ1200/24 Link Pin	16
6	XXXXXX	1/2" Hex Head Bolt x 5" Long	4
7	XXXXXX	External Retaining Ring	XX
8	XXXXXX	Lynch Pin	XX
9	HJP-HJ2415-DIE-PIN	HJ1200 Die Pin	22
10	HJP-HJ2412-DIE-SPRING	HJ1200 Die Spring	22
11	XXXXXX	5/8-11UNC-Nylon Lock Nut	4
12	HJP-HJ12-WID-GRP-JAW	HJ1200 Wide Grip Jaw	2
12-1	HJP-HJ12-CLS-GRP-JAW	HJ1200 Close Grip Jaw Package	2
13	HJP-HJ2412-LNK	HJ1200/24 Links	12
14	HJP-HJ12-DIE-TNG-3.5	Die Tong 1/2" x 1 1/4" x 3.5"	8
15	HJP-HJ2412-LNK-PIN-HND	HJ1200/24 Link Pin with Handle	2
16	HJP-HJ12-DIE-TONG-4	Die Tong 1/2" x 1 1/4" x 4.0"	14

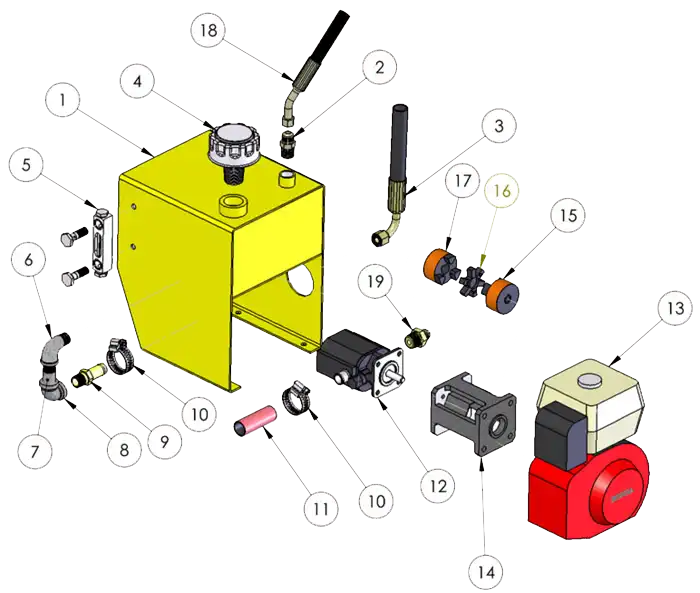

Item Number	Part Number	Description	Quantity
1	HJP-HJ12-HYD-TNK	Hydraulic Tank	1
2	XXXXXX	Hex Nipple Fitting 3/8" NPT x 1/2" 37 Degree Flare	1
3	HJP-HJ12-HOSE-47	Hose, 47"	1
4	HJP-HJ2412-BRT-CAP	Breather Cap North L&S	1
5	HJP-HJ2412-OIL-LEV-GAG	Oil Level Gauge L&S	1
6	XXXXXX	1/2" NPT, 90 Degree Street Elbow	1
7	XXXXXX	1/2" NPT x 2.00" Long Pipe Nipple	1
8	XXXXXX	1/2" NPT, Elbow 90 Degree	1
9	XXXXXX	1/2" NPT Hose Bar-Fitting, Plated	1
10	XXXXXX	1" Worm Hose Clamp	2
11	XXXXXX	1" Heater Hose Cut to 3"	1
12	HJP-HJ2412-PMP	Pump Small and Large	1
13	HJP-HJ12-ENG-5.5	Honda Engine 5.5 HP	1
14	HJP-HJ12-PMP-MNT-BRKT	Pump Mounting Bracket North P/N 3030 SM	1
15	HJP-HJ12-CPL-STD-HLF-34	3005 Std. Half Coupling 3/4"	1
16	HJP-HJ2412-CPL-INS	Coupling Insert North P/N 3009	1
17	HJP-HJ12-CPL-STD-34	Pump Coupling North P/N 3002 S&L	2
18	HJP-HJ12-HOSE-19.5	Hose, 19.5"	1
19	XXXXXX	Hex Nipple Fitting 3/4" NPT x 1/2" x 37 Degree Flare	1
