Hydro-Jaw 2400 Assembly

Item Number	Part Number	Description	Quantity
1	See Below	Stationary Arm Assembly	1
2	See Below	Arm Assembly	1
3	See Below	Engine and Hydraulic Tank Assembly	1
4	See Below	3-Spool Valve Assembly	1
5	See Below	1-Spool Valve Assembly	1
6	N/A	HJ2400 Body Weldment Assembly	1
7	HJ231	3-Spool Valve to Stationary Arm Center Right Hose 34.5" 4G2-90 Degree	1
8	HJ230	3-Spool Valve to Stationary Arm Center Left Hose 34.5" 4G2-90 Degree	1
9	HJ233	3-Spool Valve to Arm Bottom Right Hose 46" 4G2-90 Degree	1
10	HJ232	3-Spool Valve to Arm Bottom Left Hose 47" 4G2-90 Degree	1
11	HJ229	3-Spool Valve to Vert Cyl Top Right Hose 24.5" 4G1-Straight & 1-90 Degree	1
12	HJ228	3-Spool Valve to Vert Cyl Top Left Hose 19.5" 4G1-Straight & 1-90 Degree	1
13	HJ226	3-Spool Valve to Supply Hose 34" 8G2-90 Degree	1
14	HJ227	3-Spool Valve to Return Hose 22.5" 8G1-90 Degree & 1-45 Degree	1
15	HJ225	3-Spool Valve to 1-Spool Valve Supply Hose 19" 8G2-90 Degree	1
16	HJ219	1-Spool Valve to Rear Cylinder Bottom Hose 12" 4G2-90 Degree	1
17	HJ220	1-Spool Valve to Rear Cylinder Top Hose 29" 4G2-90 Degree	1
18	HJ224	1-Spool Valve Supply Hose 26" 8G1-Straight & 1-45 Degree	1
19	HJ222	Hydro Tank to 3-Spool Valve Return Hose 16" 8G1-Straight & 1-45 Degree	1
20	HJ223	Hydro Tank to 3-Spool Valve Supply Hose 24.5" 8G1-Straight & 1-45 Degree	1
21	HJ221	1-Spool Valve Return Hose 15.5" 8G2-90 Degree	1
22	N/A	Hex Nipple Fitting Male O-Ring 3/8" x 1/4" JIC, 37 Degree Flare	2
23	N/A	Hex Nipple Fitting 3/4" NPT x 1/2" JIC, 37 Degree Flare	11
24	N/A	Hex Nipple Fitting 1/4" NPT x 1/8" JIC, 37 Degree Flare	2
25	N/A	.312" Hex Head Bolt 1.50" Long	3
26	N/A	.312" Hex Head Bolt 2.00" Long	3
27	N/A	.312" Nut	5
28	N/A	Snap Ring	12
29	HJ213	Thrust Cylinder Mounting Pin	1
30	HJ202	Hydraulic Thrust Cylinder	1
31	HJ217	Thrust Cylinder Connecting Pin	1
32	N/A	1.5" Lynch Pin, Zinc-Plated	2
33	N/A	.75" Front Wheel Washer	2
34	HJ210	Front Wheel	2
35	N/A	Wheel Spacer	2
36	N/A	Front Wheel Axle	2
37	N/A	Arm Adjustment Screw	1
38	N/A	Adjustment Arm Bushing	1
39	N/A	Adjustment Arm Spacer Bushing	1
40	HJ127	Spring	1
41	N/A	.625" x 8.00" Long Eye Bolt	1
42	N/A	J" Hook chain Bracket and Handle	1
43	N/A	.625" Washer	1
44	N/A	.625" Lock Nut	2
45	HJ2400-27	Tee Handle	1
46	HJ126	Rear Wheel	1
47	N/A	.625" Hex Head Bolt 4.50" Long	1
48	N/A	Handle Fork	2
49	N/A	3/16" x 3 1/4" Hitch Pin	4
50	N/A	Rear Up and Down Hydraulic Cylinder Mounting Pin	2
51	HJ209	Rear Up and Down Hydraulic Cylinder	1
52	N/A	Swivel Plate Pin	3

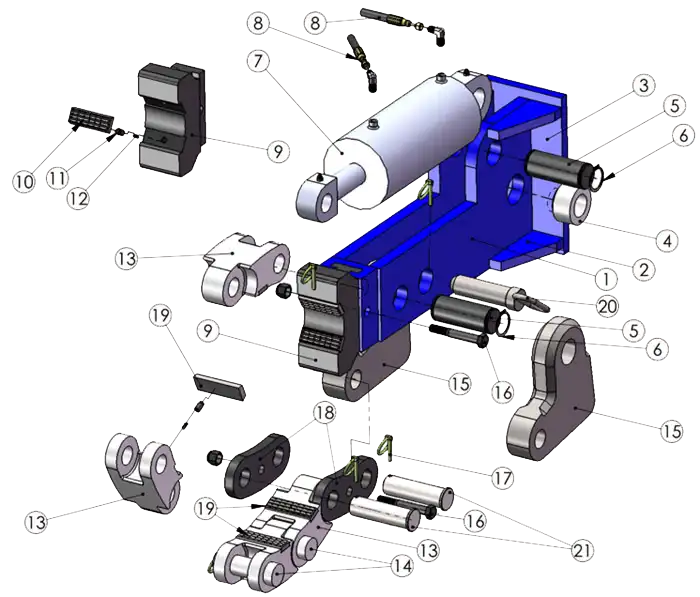

Stationary Arm Assembly

Item Number	Part Number	Description	Quantity
1	HJP-HJ24-FIX-ARM-ASSY		1
2	HJP-HJ24-ARM-PLT-GUS	Arm Plate Gusset	2
3	HJP-HJ24-FIX-ARM-PLT	Fix Arm Plate	1
4	HJP-HJ24-ARM-SLDING-CLR	Sliding Arm Collar	1
5	HJP-HJ24-CYL-L-LNK-MNT-PIN	Cylinder L-Link Mounting Pin	2
6	XXXXXX	Snap Ring	10
7	HJP-HJ24-CYL-CHA	Chain Cylinder	1
8	HJP-HJ24-HOSE-34.5	Stat. Arm to 3-Spl Valve Hose	1
9	HJP-HJ2412-WID-GRP-JAW	Wide Grip Jaw	1
10	HJP-HJ2414-DIE-TNG-3.5	Die Tong 3.5" Long	2
11	HJP-HJ2412-DIE-PIN	Die Pin	11
12	HJP-HJ24-DIE-PIN-SPR	Die Spring	11
13	HJP-HJ24-LNK	Link	8
14	HJP-HJ2412-LNK-PIN	Link Pin	8
15	HJP-HJ24-L-LNK	L-Link	1
16	XXXXXX	3/4" Hex Head Bolt 5" Long	2
17	XXXXXX	1.5" Lynch Pin, Zinc-Plated	6
18	HJP-HJ24-STR-LNK	Starter Link	2
19	HJP-HJ12-DIE-TNG-4	Die Tong 1/2" x 1 1/4" x 4"	9
20	HJP-HJ2412-LNK-PIN-HND	HJ2400 Link Pin with Handle	1
21	HJP-HJ24-STR-LNK-PIN	Starter Link Pin	2

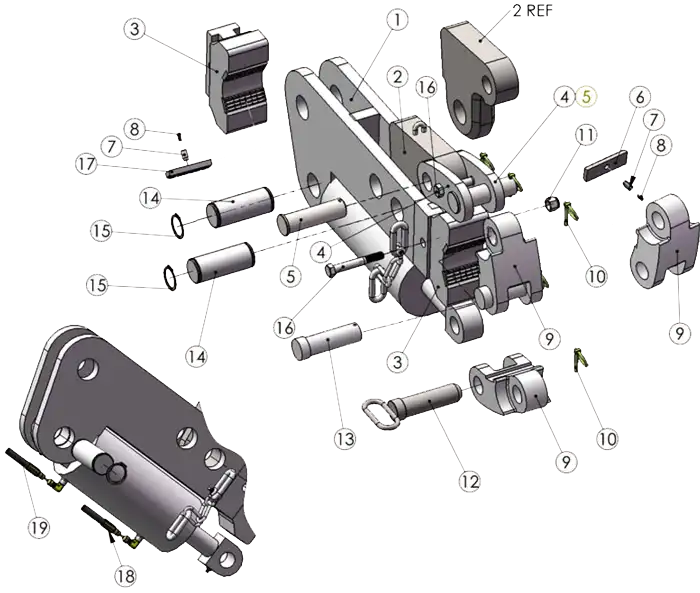

Arm Assembly

Item Number	Part Number	Description	Quantity
1	HJP-HJ24-THR-ARM-ASSY	HJ2400 Thrust Arm 1.00 T-1 Assembly	1
2	HJP-HJ24-L-LNK	HJ2400 L-Link	2
3	HJP-HJ24-WID-GRP-JAW	HJ2400 Wide Grip Jaw	2
4	HJP-HJ24-STR-LNK	HJ2400 Starter Link	4
5	HJP-HJ24-STR-LNK-PIN	HJ2400 Starter Link Pin	4
6	HJP-HJ2412-DIE-TNG-4	HJ2400 Die Tong 1/2" x 1 1/4" x 4" Long	18
7	HJP-HJ2412-DIE-PIN	Die Pin	22
8	HJP-HJ2412-DIE-SPR	Die Spring	22
9	HJP-HJ2412-LNK	Link	12
10	XXXXXX	1.5"Lynch Pin, Zinc-Plated	20
11	XXXXXX	3/4" Hex Head Nut	2
12	HJP-HJ24-STR-LNK-PIN	Starter Link Pin	4
13	HJP-HJ2412-LNK-PIN	Link Pin	16
14	HJP-HJ24-CYL-L-LNK-MNT-PIN	HJ2400 Cylinder L-Link Mounting Pin	4
15	XXXXXX	Snap Ring	4
16	XXXXXX	3/4" Hex Head Bolt 5" Long	2
17	HJP-HJ2412-DIE-TNG-3.5	Die Tong 1/2" x 1 1/4" x 3.5" Long	4
18	XXXXXX	Arm to 3-Spl Valve Hose 46" 4G 1-Straight & 1-90 Degree	1
19	XXXXXX	Arm to 3-Spl Valve Hose 47" 4G 1-Straight & 1-90 Degree	1

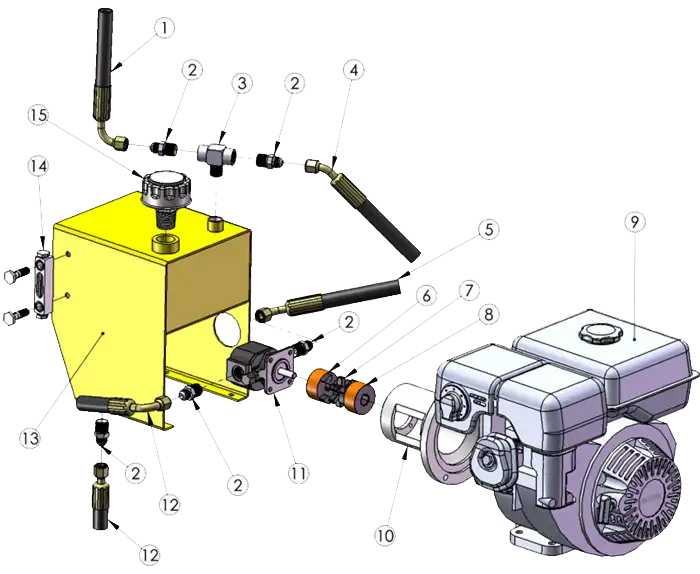

Engine and Hydraulic Tank Assembly

Item Number	Part Number	Description	Quantity
1	HJP-HJ24-Hose-15.5	1-Spool Valve to Hydro Tank Return Hose 15.5" 8G2-90 Degree	1
2	XXXXXX	Hex Nipple Fitting 1/2" NPT x 3/4" JIC, 37 Degree Flare	5
3	XXXXXX	3/4" NPT Female-Female-Male Branch Tee	1
4	HJP-HJ24-HOSE-16	Hydro Tank to 3-Spool Valve Return Hose 16" 8G 1-Straight & 1-45 Degree	1
5	HJP-HJ24-HOSE-24.5	Hydro Tank to 3-Spool Valve Supply Hose 24.5" 8G 1-Straight & 1-45 Degree	1
6	HJP-HJ2412-CPL-STS-34	Lovejoy 1/2" Pump Coupler	1
7	HJP-HJ2412-CPL-INS	Lovejoy Interlocking Bushing Insert	1
8	HJP-HJ24-CPLING	Honda OHV Engine Coupler	1
9	HJP-HJ24-ENG-9.0	Honda OHV Engine 8.0 HP	1
10	HJP-HJ24-PMP-MNT-BRK	Pump Bracket	1
11	HJP-HJ2412-PMP	Pump	1
12	HJP-HJ24-HOSE-10	Hydro Tank to Pump Hose 10" 8G 1-Straight & 1-90 Degree	1
13	XXXXXX	Hydraulic Tank	1
14	HJP-HJ2412-OIL-LEV-GAG	Oil Level Gauge	1
15	HJP-HJ2412-BRT-CAP	Breather Cap	1

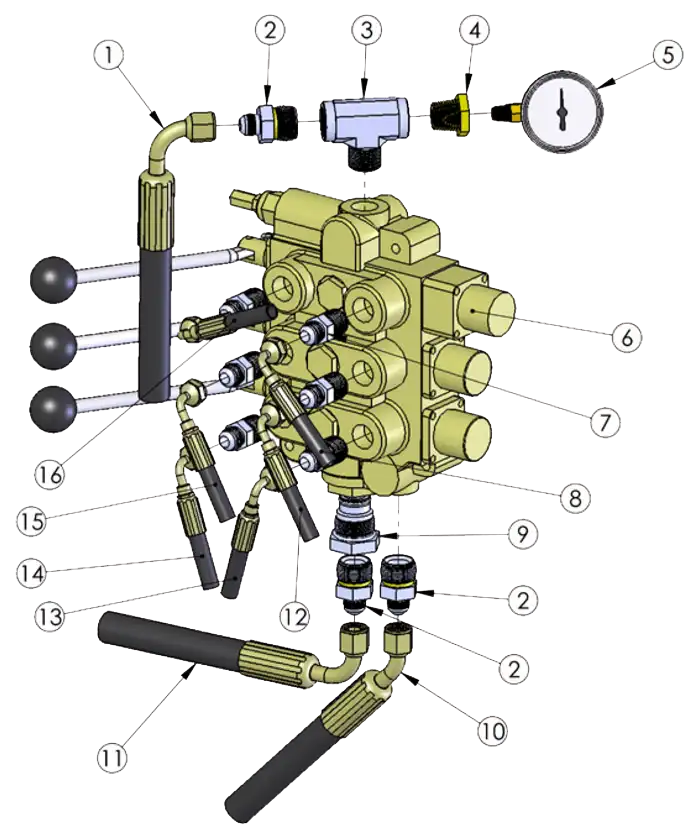

3-Spool Valve Assembly

Item Number	Part Number	Description	Quantity
1	HJP-HJ24-HOSE-34	2-Spool Valve Supply Hose 34" 8G 2-90 Degree	1
2	XXXXXX	Hex Nipple Fitting 3/4" NPT x 1/2" JIC, 37 Degree Flare	3
3	XXXXXX	3/4" NPT Female-Female-Male Branch Tee	1
4	XXXXXX	Bushing Reducer 3/4" NPT to 1/4" NPT	1
5	HJP-HJ2412-GAG-PSI-0-5000	Hydraulic Gauge 5000 PSI	1
6	HJP-HJ2412-HYD-VAL-3SP	3-Spool Valve Manifold	1
7	XXXXXX	Hex Nipple Fitting 1/2" NPT x 3/4" JIC, 37 Degree Flare	6
8	HJP-HJ24-HOSE-24.5	3-Spool Valve to Vert Cyl Top Right Hose 24.5" 4G 1-Straight & 1-90 Degree	1
9	XXXXXX	Power Beyond O-Ring Bushing Reducer 1" NPT to 3/4" NPT	1
10	HJP-HJ24-HOSE-22.5	3-Spool Valve Return Hose 22.5" 8G 1-90 Degree & 1-45 Degree	1
11	HJP-HJ24-HOSE-19	3-Spool Valve to 1-Spool Valve Supply Hose 19" 8G 2-90 Degree	1
12	HJP-HJ24-HOSE-34.5	3-Spool Valve to Stationary Arm Center Right Hose 46" 4G 2-90 Degree	1
13	HJP-HJ24-HOSE-46	3-Spool Valve to Arm Bottom Right Hose 34.5" 4G 2-90 Degree	1
14	HJP-HJ24-HOSE-47	3-Spool Valve to Arm Bottom Left Hose 34.5" 4G 2-90 Degree	1
15	HJP-HJ24-HOSE-34.5	3-Spool Valve to Stationary Arm Center Left Hose 47" 4G 2-90 Degree	1
16	HJP-HJ24-HOSE-19.5	3-Spool Valve to Vert Cyl Top Left Hose 19.5" 4G 1-Straight & 1-90 Degree	1

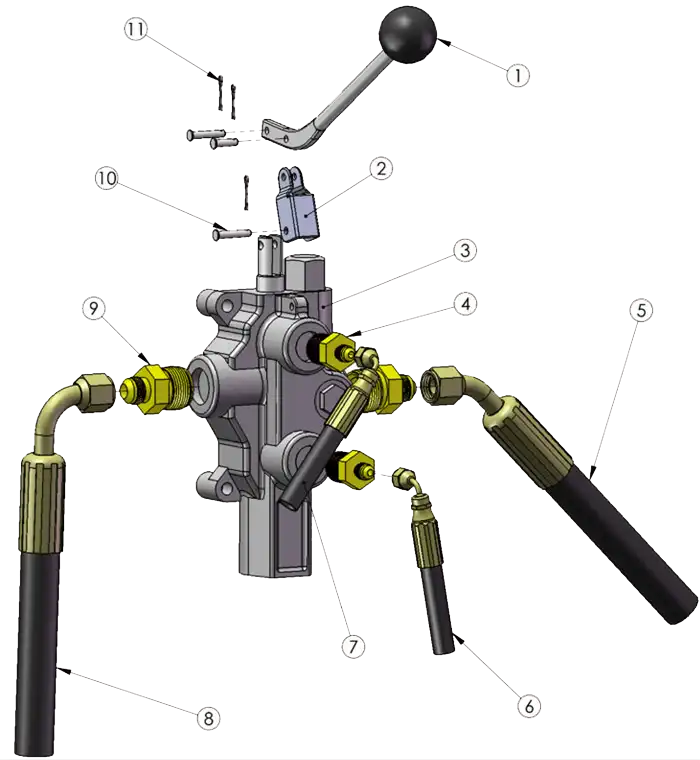

1-Spool Valve Assembly

Item Number	Part Number	Description	Quantity
1	WITH VALVE	Valve Handle	1
2	WITH VALVE	Valve Handle Link	1
3	HJP-HJ24-VAL-1-SPL	1-Spool Valve Manifold	1
4	XXXXXX	Hex Nipple Fitting 1/2" NPT x 1/4" JIC 37 Degree Flare	2
5	HJP-HJ24-HOSE-26	1-Spool Valve Supply Hose 26" 8G 1-Straight & 1-45 Degree	1
6	HJP-HJ24-HOSE-12	1-Spool Valve to Rear Cylinder Bottom Hose 12" 4G2-90 Degree	1
7	HJP-HJ24-HOSE-290	1-Spool Valve to Rear Cylinder Top Hose 29" 4G 2-90 Degree	1
8	HJP-HJ24-HOSE-15.5	1-Spool Valve Return Hose 15.5" 8G 2-90 Degree	1
9	XXXXXX	Hex Nipple Fitting 3/4" NPT x 1/2" JIC, 37 Degree Flare	2
10	WITH VALVE	Valve Handle Pin	3
11	WITH VALVE	C-Pin	3
