Type C – Pillow Style Tank
Features:
- FDA approved rugged PVC (coated nylon)
- Eleven (11) standard sizes
- Compact — easy to store
- Resists chemical contamination, mildew, rot, and solar heat
- RF welded seams for longer life
- Severe weather tolerance to -40 degrees F
- Fills and empties in minutes by pump or gravity flow
- Easily handled by one man
- 1 1/2″ ball valve with female threads
- Large 4″ diameter fill opening
- Transportable by truck
- Optional ball valves available – 2″ to 4″
- Camlock connections available
- Sizes from 100 Gallons (54″ x 58″ x 16″) to 5000 Gallons (175″ x 226″ x 36″)

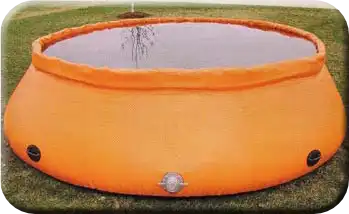

Type B – Self-Supporting Tanks
Features:
- Easy one man set-up
- Self-supporting – NO frame work
- Foam collar – NO need to inflate
- NO foot pump necessary
- NO auxiliary air
- NO assembly
- All self-supporting tanks are supplied with one threaded flange coupling installed. Sizes 1 1/2″ to 5″ NST or IPT, male or female (specify choice)
- Any number and size of hose connections can be added for bottom drafting
- All seams welded for longer life
- Heavy duty vinyl (PVC)
- Easily repairable
- Compact storage bag included
- 4 support rings
- Sizes from 500 Gallons (approx. 3′ x 7′) to 5000 Gallons (approx. 3′ x 19′)

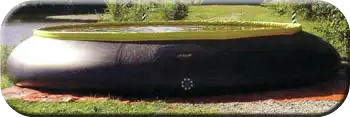

Type B – High Side – Agricultural / Industrial
Features:
- Special high sides
- Easy one man setup
- Self-supporting – NO frame work
- Foam collar – NO need to inflate
- NO foot pump necessary
- NO assembly
- Heavy duty vinyl (PVC)
- 4 support rings
- Easily repairable
- All seams welded for longer life
- Compact storage bag included
- All self-supporting tanks are supplied with one aluminum threaded flange coupling installed. Sizes 1 1/2″ to 5″ NST or IPT, male or female (specify choice)
- Any number and size of hose connections can be added for bottom drafting
- Sizes from 500 Gallons (approx. 3′ x 7′) to 20,000 Gallons (approx. 8′ x 24′)
Type A – Low Side Model – FDT
Portable Hinged Steel Frame Storage Tanks with Liner
Features:
- Fully assembled, ready to use
- Designed for fluid containment in an emergency situation or for temporary storage
- Easily stored
- Maintenance – Little or none required
- Liner Repair – Adhesive patching
- Completely portable
- Fabric Cover – Optional
- Inlet and Outlet Connections – Optional
- Aluminum Frames – Optional
- Sizes from 600 Gallons (29″ x 6′ x 6′) to 5000 Gallons (24″ x 20′ x 24′)
Type D – Relay / Storage Tank
Features:
- Self-supporting
- Closed Top – Prevents contamination
- Lightweight
- Easily Transportable
- Portable Water (special order)
- Optional Ball Valves (1 1/2″ to 2″)
- Sizes from 150 Gallons (48″ x 48″ x 28″) to 1500 Gallons (108″ x 108″ x 56″)
Fol-Da-Dam
Secondary Containment System for Temporary Containment of Hazardous Liquid Spills
Convenient Portable Containment System for quick and temporary containment of hazardous materials. The Portable Inflatable Dam is also ideal for cleaning and decontaminating all types of equipment.
Features:
- Storage bags and aluminum L-brackets
- Folds down to 1% of its total volume
- Custom sizes available
Type E – Fol-Da-Dam Air Tube Sides
Sizes from 750 Gallons (10′ x 10′ x 17″) to 10,800 Gallons (72′ x 32′ x 17″)
Type F – Fol-Da-Dam Aluminum “L” Brackets
Sizes from 135 Gallons (6′ x 6′ x 6″) to 7500 Gallons (20′ x 50′ x 12″)
Type FL – Fol-Da-Dam Aluminum “L” Rod
Sizes from 60 Gallons (4′ x 4′ x 6″) to 7500 Gallons (20′ x 50′ x 12″)
