Product Details
This Missile LXQ N180 Shank DTH Hammer is manufactured using the highest quality materials which increases reliability, performance, and production.
Hammer Specifications – Missile LXQ N180 Shank
Features:
- Easy to service
- Special heat-treated alloy piston for long life, Rockwell hardness 60
- Minimum loss of performance when injecting foam or water

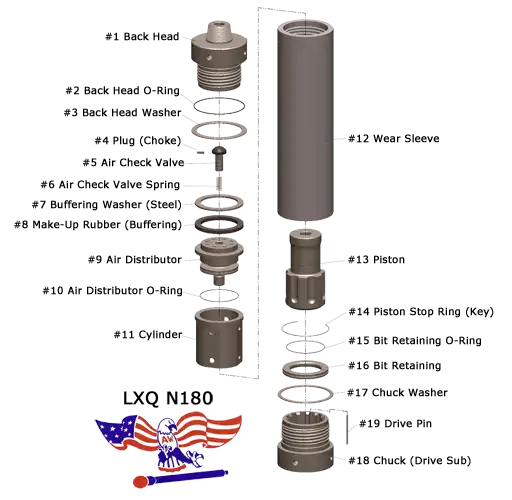

| Item # | Description | Part # |
|---|---|---|
| 1 | Back Head | LQN2001 |
| 2 | Back Head O-Ring | LQN2002 |
| 3 | Back Head Washer | LQN2003 |
| 4 | Choke | LQN2004 |
| 5 | Air Check Valve | LQN2005 |
| 6 | Air Check Valve Spring | LQN2006 |
| 7 | Make-Up Washer (Buffering) | LQN2007 |
| 8 | Make-Up Rubber (Buffering) | LQN2008 |
| 9 | Air Distributor | LQN2009 |
| 10 | Air Distributor O-Ring | LQN2010 |
| 11 | Cylinder | LQN2011 |
| 12 | Wear Sleeve | LQN2012 |
| 13 | Piston | LQN2013 |
| 14 | Piston Stop Ring | LQN2014 |
| 15 | Bit Retaining O-Ring | LQN2015 |
| 16 | Bit Retaining Ring | LQN2016 |
| 17 | Chuck Washer | LQN2017 |
| 18 | Chuck | LQN2018 |
| 19 | Drive Pin | LQN2020 |
Specifications
| Length (w/o drill bit) | 73.779" |
| Outside Diameter | 16.732" |
| Weight (w/o bit) | 3621 lbs. |
| Cylinder Bore | 11.968" |
| Piston O.D. | 11.962" |
| Piston Stroke | 5.118" |
| Piston Weight | 498 lbs. |
| Hole Sizes | 18 3/8" - 26 3/8" |
| Air Pressure Consumption | 100 psi - 250 psi |
| Wrench Size | - |
| Connection | Std. 8 5/8" API Reg Pin |
Air Consumption Chart
| PSI | 100 | 150 | 200 | 250 | 300 | 350 |
|---|---|---|---|---|---|---|
| CFM with blank choke | 1,250 | 1,840 | 2,580 | 3,380 | - | - |
| with 1/8" choke | - | - | - | - | - | - |
| with 1/4" choke | - | - | - | - | - | - |
All Hammers come fitted with blank Choke located in the Air Check Valve
Click here to download Missile LXQ N180 Shank brochure.
Click here to view and/or download Wear Tolerance Specifications for our Missile LXQ N180 Shank DTH Hammer.
Lubrication
G-Force Nova Series Hammers are precision-made tools and should be treated as such. Only the highest quality lubrication should be used and a constant flow of oil must be maintained at all times. Recommended lubrication amount 1/3 Pint per 100 cfm per hour.
| Recommended Grades of Lubricant | |
|---|---|
ESSO | AROX EP 150 |
MATEX | RDO 302 |
CASTROL | RD OIL DP 100 |
SHELL | AIR TOOL OIL 2 A 320 |
MOBILE | ALMO NO. 5 |
Heavy duty oil is recommended for all year-round use, in particular where air supply to the hammer is at high temperature. If lighter grade oil is required due to very low ambient temperatures, amount of oil being used should be increased by 30 percent.
Recommended Pull Down
| Minimum @ 100 psi - 0000 lbs. | Maximum @ 350 psi - 0000 lbs. |
|---|---|
Hammer Warranty will be voided by the following:
Welding on Wear Sleeve.
Heating Case with a Torch.
Gripping Wrenches across Threads.
Hammering on Casing.
