Product Details
This Missile LXQ QL120 Shank DTH Hammer is manufactured using the highest quality materials which increases reliability, performance, and production.
Hammer Specifications – Missile LXQ QL120 Shank
Features:
- Easy to service
- Special heat-treated alloy piston for long life, Rockwell hardness 60
- Minimum loss of performance when injecting foam or water

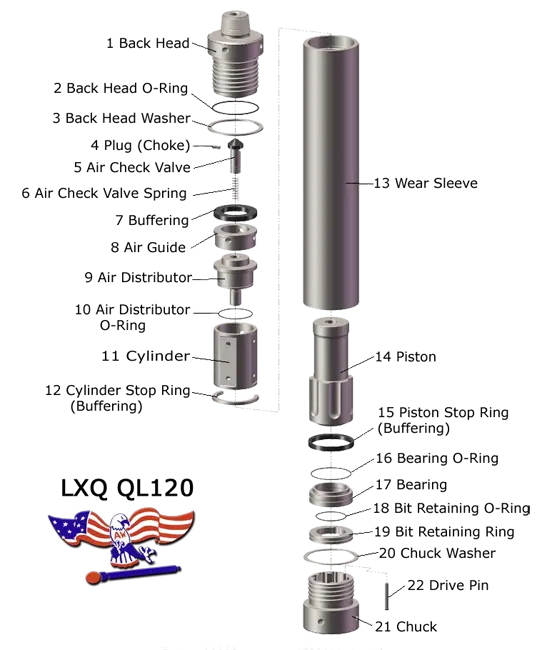

| Item # | Description | Part # |
|---|---|---|
| 1 | Back Head | LQQ1201 |
| 2 | Back Head O-Ring | LQQ1202 |
| 3 | Back Head Washer | LQQ1203 |
| 4 | Plug (Choke) | LQQ1204 |
| 5 | Air Check Valve | LQQ1205 |
| 6 | Air Check Valve Spring | LQQ1206 |
| 7 | Buffering | LQQ1207 |
| 8 | Air Guide | LQQ1208 |
| 9 | Air Distributor | LQQ1209 |
| 10 | Air Distributor O-Ring | LQQ1210 |
| 11 | Cylinder | LQQ1211 |
| 12 | Cylinder Stop Ring (Buffering) | LQQ1212 |
| 13 | Wear Sleeve | LQQ1213 |
| 14 | Piston | LQQ1214 |
| 15 | Piston Stop Ring (Buffering) | LQQ1215 |
| 16 | Bearing O-Ring | LQQ1216 |
| 17 | Bearing | LQQ1217 |
| 18 | Bit Retaining O-Ring | LQQ1218 |
| 19 | Bit Retaining | LQQ1219 |
| 20 | Chuck Washer | LQQ1220 |
| 21 | Chuck | LQQ1221 |
| 22 | Drive Pin | LQQ1222 |
Specifications
| Length (w/o drill bit) | 71.004 " |
| Outside Diameter | 10.79 " |
| Weight (w/o bit) | 1,333 lbs. |
| Cylinder Bore | 8.5 " |
| Piston O.D. | - |
| Piston Stroke | - |
| Piston Weight | 256.4 lbs |
| Hole Sizes | - |
| Air Pressure Consumption | - |
| Wrench Size | - |
| Connection | Std. 6 5/8 " API Reg Pin |
Air Consumption Chart
| PSI | 100 | 150 | 200 | 250 | 300 | 350 |
|---|---|---|---|---|---|---|
| CFM with blank choke | 750 | 1,125 | 1,675 | 1,925 | 2,475 | 2,960 |
| with 1/8" choke | 825 | 1,225 | 1,800 | 2,150 | - | - |
| with 1/4" choke | 900 | 1,325 | 1,925 | 2,275 | - | - |
All Hammers come fitted with blank Choke located in the Air Check Valve
Click here to download Missile LXQ QL120 Shank brochure.
Click here to view and/or download Wear Tolerance Specifications for our Missile LXQ QL120 Shank DTH Hammer.
Lubrication
G-Force Nova Series Hammers are precision-made tools and should be treated as such. Only the highest quality lubrication should be used and a constant flow of oil must be maintained at all times. Recommended lubrication amount 1/3 Pint per 100 cfm per hour.
| Recommended Grades of Lubricant | |
|---|---|
ESSO | AROX EP 150 |
MATEX | RDO 302 |
CASTROL | RD OIL DP 100 |
SHELL | AIR TOOL OIL 2 A 320 |
MOBILE | ALMO NO. 5 |
Heavy duty oil is recommended for all year-round use, in particular where air supply to the hammer is at high temperature. If lighter grade oil is required due to very low ambient temperatures, amount of oil being used should be increased by 30 percent.
Recommended Pull Down
| Minimum @ 100 psi - 5600 lbs. | Maximum @ 350 psi - 9900 lbs. |
|---|---|
Hammer Warranty will be voided by the following:
Welding on Wear Sleeve.
Heating Case with a Torch.
Gripping Wrenches across Threads.
Hammering on Casing.
