Petol/Gearench Chain Tongs

Petol Chain Tong 2344 (2 1/8″ – 5″ OD Pipe)

$1,262.00 – $2,021.00

Product Details

These Petol Drill Pipe Tongs are designed for making up and breaking out drill pipe, casing, and hammer drills on light rigs and are OEM installed on many rigs. Handles range from 8″ to 36″ and pipe sizes range from 1″ up to 14″ OD.

Four different heads and various chains cover the size range. The heads and chains are sold separately. Adder links are available to create different chain lengths.

Petol Drill Pipe Chain Tong Sizes

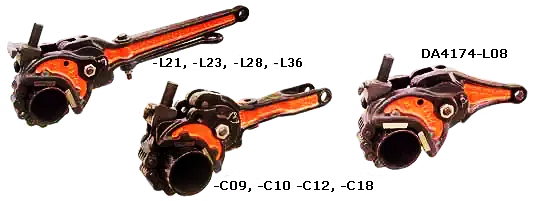

PETOL Drill Pipe Tongs

Catalog #O.D.*Gripping WidthHandle Length**Weight***
DA13441 - 6"4"8"12 lbs.
DA2344-C122 1/8 - 5"4.44"12"27 lbs.
DA2344-L212 1/8 - 5"4.44"21"31 lbs.
DA4174-L083 - 8 1/4"5.00"8"40 lbs.
DA4174-C123 - 8 1/4"5.00"12"43 lbs.
DA4174-L213 - 8 1/4"5.00"21"45 lbs.
DA6184-C104 1/4 - 10 3/4"4.88"10"49 lbs.
DA6184-L364 1/4 - 10 3/4"4.88"36"74 lbs.
DA8184-CO94 - 14"7.25"9"91 lbs.
DA8184-C184 - 14"7.25"18"120 lbs.
DA8184-L234 - 14"7.25"23"114 lbs.
DA8184-L284 - 14"7.25"28"122 lbs.
DA8184-L364 - 14"7.25"36"129 lbs.

*Chain assemblies must be ordered separately (see Chain Guides and Torque Tables)
**Call for torque arm lengths
***Weights do not include chain

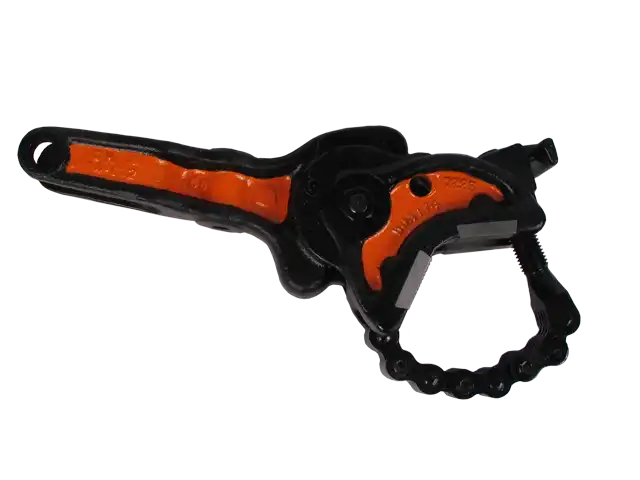

Petol Drill Pipe Chain Tong

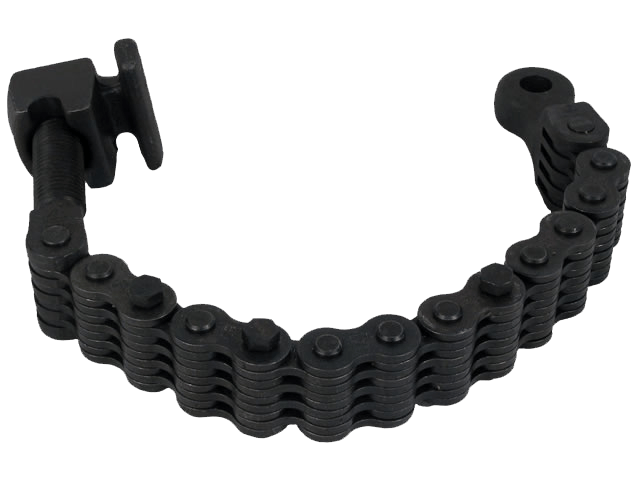

Petol Drill Pipe Chain Tong Chain

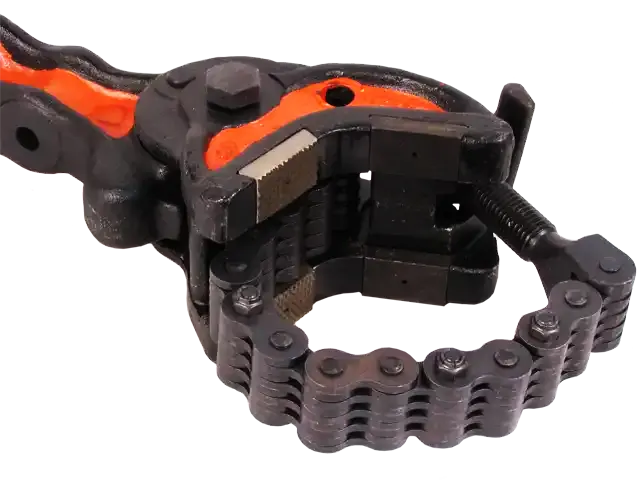

Petol Drill Pipe Chain Tong

Adobe pdf logoSafe Practices and Procedures Manual

Adobe pdf logoChain Identification Guide



Exploded View / Parts List for Petol Drill Pipe Tongs

CautionWarning! Do Not Exceed Maximum Working Load. Overloading may result in injury or death. Always use a load cell or other calibrated indicating device to monitor the line pull on the tong to avoid overload. Read Safe Practices and Procedures Manual prior to operation. Follow OSHA, NSC, etc. standards, safe practices, and procedures.

Chain Guides and Torque Tables

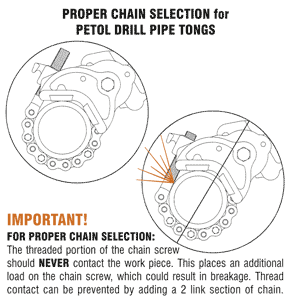

Chain Selection Guide
DA1344 Chain
Catalog #O.D.
131-45-05D1 - 1 3/4"
131-45-07D1 7/8 - 2 1/2"
131-45-09D2 5/8 - 3 1/4"
131-45-11D3 1/4 - 3 7/8"
131-45-13D3 7/8 - 4 1/2"
131-45-15D4 1/2 - 5 1/8"
131-45-17D5 1/8 - 5 3/4"
131-45-19D5 3/4 - 6"
DA1344 Torque Table
O.D.Max Working Load
1" - 6"5000 ft lbs
DA2344-C12 Chain
Catalog #O.D.
151-45-05D*2 1/8 - 2 1/2"
151-45-07D*2 5/8 - 3 1/2"
151-45-09D3 5/8 - 4 3/8"
151-45-11D4 1/2 - 5"
*4 Diamond Point or 4 Knurled Point Inserts
are required to grip 2 1/8" - 3 1/2" O.D.
DA2344-C12 Torque Table
O.D.Max Working Load
2 1/8 - 2 1/4"12,400 ft lbs
2 3/8 - 2 5/8"12,800 ft lbs
2 3/4 - 3 1/8"13,000 ft lbs
3 1/4 - 3 1/2"13,200 ft lbs
3 5/8 - 4"13,400 ft lbs
4 1/8 - 4 1/2"13,600 ft lbs
4 5/8 - 5"13,800 ft lbs
DA2344-L21 Chain
Catalog #O.D.
151-45-05D*2 1/8 - 2 1/2"
151-45-07D*2 5/8 - 3 1/2"
151-45-09D3 5/8 - 4 3/8"
151-45-11D4 1/2 - 5"
*4 Diamond Point or 4 Knurled Point Inserts
are required to grip 2 1/8" - 3 1/2" O.D.
DA2344-L21 Torque Table
O.D.Max Working Load
2 1/8 - 2 3/8"11,400 ft lbs
2 1/2 - 3 1/8"11,600 ft lbs
3 1/4 - 3 7/8"11,800 ft lbs
4 - 5"12,000 ft lbs
DA4174-C12 Chain
Catalog #O.D.
151-45-07D*3 - 3 3/4"
151-45-09D3 3/4 - 4 1/2"
151-45-11D4 1/2 - 5 3/8"
151-45-13D5 3/8 - 6 1/4"
151-45-15D6 1/4 - 7"
151-45-17D7 1/16 - 8 1/4"
*4 Diamond Point or 4 Knurled Inserts
are required to grip 3" - 3 3/4" O.D.
DA4174-C12 Torque Table
O.D.Max Working Load
3"18,700 ft lbs
3 3/8"19,200 ft lbs
3 1/2"19,800 ft lbs
3 5/8 - 3 7/8"20,200 ft lbs
4 - 4 3/8"20,500 ft lbs
4 1/2 - 4 7/8"20,800 ft lbs
5 - 5 3/8"21,200 ft lbs
5 1/2 - 5 7/8"21,600 ft lbs
6 - 6 3/8"21,900 ft lbs
6 1/2 - 6 7/8"22,300 ft lbs
7 - 7 3/8"22,600 ft lbs
7 1/2 - 7 7/8"23,000 ft lbs
8 - 8 1/4"23,300 ft lbs
DA4174-L08 Chain
Catalog #O.D.
151-45-07D*3 - 3 3/4"
151-45-09D3 3/4 - 4 1/2"
151-45-11D4 1/2 - 5 3/8"
151-45-13D5 3/8 - 6 1/4"
151-45-15D6 1/4 - 7"
151-45-17D7 1/16 - 8 1/4"
*4 Diamond Point or 4 Knurled Inserts
are required to grip 3" - 3 3/4" O.D.
DA4174-L08 Torque Table
O.D.Max Working Load
3 - 4 5/8"16,900 ft lbs
4 3/4 - 5 7/8"17,100 ft lbs
6 - 6 7/8"17,300 ft lbs
7 - 8 1/4"17,500 ft lbs
DA4174-L21 Chain
Catalog #O.D.
151-45-07D*3 - 3 3/4"
151-45-09D3 3/4 - 4 5/8"
151-45-11D4 3/4 - 5 1/2"
151-45-13D5 5/8 - 6 3/8"
151-45-15D6 3/8 - 7 1/4"
151-45-17D7 1/4 - 8 1/4"
*4 Diamond Point or 4 Knurled Inserts
are required to grip 3" - 3 3/4" O.D.
DA4174-L21 Torque Table
O.D.Max Working Load
3 - 3 3/8"9,400 ft lbs
3 1/2 - 3 5/8"9,700 ft lbs
3 3/4 - 3 7/8"10,100 ft lbs
4 - 4 1/8"10,400 ft lbs
4 1/4 - 4 3/8"10,600 ft lbs
4 1/2 - 4 7/8"10,900 ft lbs
5 - 5 3/8"11,300 ft lbs
5 1/2 - 5 7/8"11,700 ft lbs
6" - 6 3/8"12,100 ft lbs
6 1/2 - 6 7/8"12,400 ft lbs
7 - 7 3/8"12,700 ft lbs
7 1/2 - 7 7/8"13,000 ft lbs
8 - 8 1/4"13,200 ft lbs
DA6184-C10 Chain
Catalog #O.D.
151-45-09D7*4 1/4 - 4 3/4"
151-45-11D74 3/4 - 5 3/4"
151-45-13D75 3/4 - 6 5/8"
151-45-15D76 5/8 - 7 1/2"
151-45-17D77 1/2 - 8 1/4"
151-45-19D78 1/4 - 9"
151-45-21D79 - 9 7/8"
151-45-23D79 7/8 - 10 3/4"
*4 Diamond Point or 4 Knurled Inserts
are required to grip 4 1/4 - 4 3/4" O.D.
DA6184-C10 Torque Table
O.D.Max Working Load
4 1/4"26,500 ft lbs
4 5/8"27,000 ft lbs
4 3/4"27,600 ft lbs
4 7/8"28,200 ft lbs
5"28,600 ft lbs
5 1/8"29,200 ft lbs
5 1/4"29,700 ft lbs
5 3/8"30,200 ft lbs
5 1/2"30,600 ft lbs
5 5/8"31,200 ft lbs
5 3/4"31,600 ft lbs
5 7/8"32,000 ft lbs
6 - 6 1/8"32,500 ft lbs
6 1/4 - 6 5/8"32,900 ft lbs
6 3/4 - 7 1/8"33,400 ft lbs
7 1/4 - 7 5/8"33,900 ft lbs
7 3/4 - 8 1/8"34,400 ft lbs
8 1/4 - 8 5/8"34,900 ft lbs
8 3/4 - 9 1/8"35,400 ft lbs
9 1/4 - 9 5/8"35,800 ft lbs
9 3/4 - 10 1/8"36,300 ft lbs
10 1/4 - 10 5/8"36,800 ft lbs
10 3/4"37,300 ft lbs
DA6184-L36 Chain
Catalog #O.D.
151-45-09D7*4 1/4 - 4 3/4"
151-45-11D74 3/4 - 5 3/4"
151-45-13D75 3/4 - 6 5/8"
151-45-15D76 5/8 - 7 1/2"
151-45-17D77 1/2 - 8 1/4"
151-45-19D78 1/4 - 9"
151-45-21D79 - 9 7/8"
151-45-23D79 7/8 - 10 3/4"
*4 Diamond Point or 4 Knurled Inserts
are required to grip 4 1/4" - 4 3/4" O.D.
DA6184-L36 Torque Table
O.D.Max Working Load
4 1/4 - 5 3/8"23,700 ft lbs
5 1/2 - 6 3/8"24,000 ft lbs
6 1/2 - 7 3/8"24,300 ft lbs
7 1/2 - 8 3/8"24,600 ft lbs
8 1/2 - 9 3/8"24,900 ft lbs
9 1/2 - 10 3/8"25,100 ft bls
10 1/2 - 10 3/4"25,400 ft bls
DA8184-C09 Chain
Catalog #O.D.
4-5 Chain Combination
161-45-07D4 - 4 1/2"
161-45-09D4 5/8 - 5 3/4"
161-45-11D5 7/8 - 7"
161-45-13D7 - 8 1/8"
161-45-15D8 1/8 - 9 1/4"
161-45-17D9 1/4 - 10 3/8"
161-45-19D10 3/8 - 11 1/2"
161-45-21D11 1/2 - 12 5/8"
161-45-23D12 5/8 - 13 3/4"
161-45-25D13 3/4 - 14"
5-4 Chain Combination
161-45-08D4 1/4 - 5 1/8"
161-45-10D5 1/4 - 6 3/8"
161-54-12D6 1/2 - 7 5/8"
161-54-14D7 1/2 - 8 3/4"
161-54-16D8 5/8 - 9 7/8"
161-54-18D9 7/8 - 11"
161-54-20D10 7/8 - 12 1/8"
161-54-22D12 - 13 1/4"
161-54-24D13 1/8 - 14"
DA8184-C09 Torque Table
O.D.Max Working Load
4 - 4 1/8"49,300 ft lbs
4 1/4 - 4 3/8"52,000 ft lbs
4 1/2 - 4 5/8"54,000 ft lbs
4 3/4 - 4 7/8"56,000 ft lbs
5 - 5 1/8"58,800 ft lbs
5 1/4 - 5 3/8"61,000 ft lbs
5 1/2 - 5 5/8"63,500 ft lbs
5 3/4 - 5 7/8"65,800 ft lbs
6 - 6 1/8"68,000 ft lbs
6 1/4 - 6 3/8"70,000 ft lbs
6 1/2 - 6 5/8"72,600 ft lbs
6 3/4 - 6 7/8"75,000 ft lbs
7 - 7 1/8"77,000 ft lbs
7 1/4 - 7 3/8"79,000 ft lbs
7 1/2 - 7 5/8"81,600 ft lbs
7 3/4 - 7 7/8"83,500 ft lbs
8 - 8 1/8"86,000 ft lbs
8 1/4 - 8 7/8"88,500 ft lbs
9 - 9 7/8"89,500 ft lbs
10 - 10 7/8"90,500 ft lbs
11 - 11 7/8"91,800 ft lbs
12 - 12 7/8"93,000 ft lbs
13 - 13 7/8"94,000 ft lbs
14"95,000 ft lbs
DA8184-C18 Chain
Catalog #O.D.
4-5 Chain Combination
161-45-07D4 - 4 1/2"
161-45-09D4 5/8 - 5 3/4"
161-45-11D5 7/8 - 7"
161-45-13D7 - 8 1/8"
161-45-15D8 1/8 - 9 1/4"
161-45-17D9 1/4 - 10 3/8"
161-45-19D10 3/8 - 11 1/2"
161-45-21D11 1/2 - 12 5/8"
161-45-23D12 5/8 - 13 3/4"
161-45-25D13 3/4 - 14"
5-4 Chain Combination
161-54-08D4 1/4 - 5 1/8"
161-54-10D5 1/4 - 6 3/8"
161-54-12D6 1/2 - 7 5/8"
161-54-14D7 1/2 - 8 3/4"
161-54-16D8 5/8 - 9 7/8"
161-54-18D9 7/8 - 11"
161-54-20D10 7/8 - 12 1/8"
161-54-22D12 - 13 1/4"
161-54-24D13 1/8 - 14"
DA8184-C18 Torque Table
O.D.Max Working Load
4 - 4 1/8"45,800 ft lbs
4 1/4 - 4 3/8"47,000 ft lbs
4 1/2 - 4 5/8"49,900 ft lbs
4 3/4 - 4 7/8"53,000 ft lbs
5 - 5 1/8"54,000 ft lbs
5 1/4 - 5 3/8"55,000 ft lbs
5 1/2 - 5 5/8"57,900 ft lbs
5 3/4 - 5 7/8"59,500 ft lbs
6 - 6 1/8"61,800 ft lbs
6 1/4 - 6 3/8"63,500 ft lbs
6 1/2 - 6 5/8"65,600 ft lbs
6 3/4 - 7 7/8"67,000 ft lbs
8 - 8 7/8"67,800 ft lbs
9 - 9 7/8"68,300 ft lbs
10 - 10 7/8"68,800 ft lbs
11 - 11 7/8"69,300 ft lbs
12 - 12 7/8"69,900 ft lbs
13 - 13 7/8"70,400 ft lbs
14"70,900 ft lbs
DA8184-L23 Chain
Catalog #O.D.
4-5 Chain Combination
161-45-07D4 - 4 1/2"
161-45-09D4 5/8 - 5 3/4"
161-45-11D5 7/8 - 7"
161-45-13D7 - 8 1/8"
161-45-15D8 1/8 - 9 1/4"
161-45-17D9 1/4 - 10 3/8"
161-45-19D10 3/8 - 11 1/2"
161-45-21D11 1/2 - 12 5/8"
161-45-23D12 5/8 - 13 3/4"
161-45-25D13 3/4 - 14"
5-4 Chain Combination
161-54-08D4 1/4 - 5 1/8"
161-54-10D5 1/4 - 6 3/8"
161-54-12D6 1/2 - 7 5/8"
161-54-14D7 1/2 - 8 3/4"
161-54-16D8 5/8 - 9 7/8"
161-54-18D9 7/8 - 11"
161-54-20D10 7/8 - 12 1/8"
161-54-22D12 - 13 1/4"
161-54-24D13 1/8 - 14"
DA8184-L23 Torque Table
O.D.Max Working Load
4 - 4 1/8"44,800 ft lbs
4 1/4 - 4 3/8"46,500 ft lbs
4 1/2 - 4 5/8"48,800 ft lbs
4 3/4 - 4 7/8"50,500 ft lbs
5 - 5 1/8"52,700 ft lbs
5 1/4 - 5 3/8"54,500 ft lbs
5 1/2 - 5 5/8"56,500 ft lbs
5 3/4 - 5 7/8"58,300 ft lbs
6 - 6 1/8"60,200 ft lbs
6 1/4 - 6 3/8"61,700 ft lbs
6 1/2 - 7 7/8"62,900 ft lbs
8 - 9 3/8"63,400 ft lbs
9 1/2 - 10 7/8"63,900 ft lbs
11 - 12 3/8"64,500 ft lbs
12 1/2 - 14"65,000 ft lbs
DA8184-L28 Chain
Catalog #O.D.
4-5 Chain Combination
161-45-07D4 - 4 1/2"
161-45-09D4 5/8 - 5 3/4"
161-45-11D5 7/8 - 7"
161-45-13D7 - 8 1/8"
161-45-15D8 1/8 - 9 1/4"
161-45-17D9 1/4 - 10 3/8"
161-45-19D10 3/8 - 11 1/2"
161-45-21D11 1/2 - 12 5/8"
161-45-23D12 5/8 - 13 3/4"
161-45-25D13 3/4 - 14"
5-4 Chain Combination
161-54-08D4 1/4 - 5 1/8"
161-54-10D5 1/4 - 6 3/8"
161-54-12D6 1/2 - 7 5/8"
161-54-14D7 1/2 - 8 3/4"
161-54-16D8 5/8 - 9 7/8"
161-54-18D9 7/8 - 11"
161-54-20D10 7/8 - 12 1/8"
161-54-22D12 - 13 1/4"
161-54-24D13 1/8 - 14"
DA8184-L28 Torque Table
O.D.Max Working Load
4 - 4 1/8"44,000 ft lbs
4 1/4 - 4 3/8"46,000 ft lbs
4 1/2 - 4 5/8"48,000 ft lbs
4 3/4 - 4 7/8"49,500 ft lbs
5 - 5 1/8"51,800 ft lbs
5 1/4 - 5 3/8"53,500 ft lbs
5 1/2 - 5 5/8"55,500 ft lbs
5 3/4 - 5 7/8"57,500 ft lbs
6 - 6 3/8"59,000 ft lbs
6 1/2 - 7 7/8"60,000 ft lbs
8 - 9 3/8"60,500 ft lbs
9 1/2 - 11 3/8"60,900 ft lbs
11 1/2 - 12 7/8"61,500 ft lbs
13 - 14"61,900 ft lbs
DA8184-L36 Chain
Catalog #O.D.
4-5 Chain Combination
161-45-07D4 - 4 1/2"
161-45-09D4 5/8 - 5 3/4"
161-45-11D5 7/8 - 7"
161-45-13D7 - 8 1/8"
161-45-15D8 1/8 - 9 1/4"
161-45-17D9 1/4 - 10 3/8"
161-45-19D10 3/8 - 11 1/2"
161-45-21D11 1/2 - 12 5/8"
161-45-23D12 5/8 - 13 3/4"
161-45-25D13 3/4 - 14"
5-4 Chain Combination
161-54-08D4 1/4 - 5 1/8"
161-54-10D5 1/4 - 6 3/8"
161-54-12D6 1/2 - 7 5/8"
161-54-14D7 1/2 - 8 3/4"
161-54-16D8 5/8 - 9 7/8"
161-54-18D9 7/8 - 11"
161-54-20D10 7/8 - 12 1/8"
161-54-22D12 - 13 1/4"
161-54-24D13 1/8 - 14"
DA8184-L36 Torque Table
O.D.Max Working Load
4 - 4 1/8"43,500 ft lbs
4 1/4 - 4 3/8"45,200 ft lbs
4 1/2 - 4 5/8"47,200 ft lbs
4 3/4 - 4 7/8"49,000 ft lbs
5 - 5 1/8"50,900 ft lbs
5 1/4 - 5 3/8"52,500 ft lbs
5 1/2 - 5 5/8"54,400 ft lbs
5 3/4 - 5 7/8"56,000 ft lbs
6 - 8 7/8"57,300 ft lbs
9 - 12 3/8"57,800 ft lbs
12 1/2 - 14"58,400 ft lbs
Views: 117

Address: 1350 E. Glendale Avenue Sparks, NV 89431

Hours:  Monday – Friday 7am – 5pm

Phone: (800) 800 – 8444

Phone: +1 (775) 355 – 1199
Email: sales@awds.com

Copyright © 2004 – 2024 | America West Drilling Supply | All Rights Reserved

Youtube Facebook
