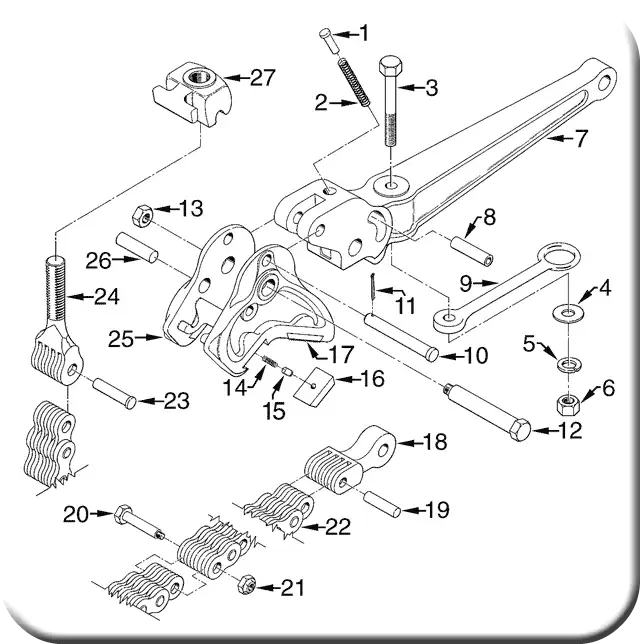

Petol Drill Pipe Tongs – Parts List
| Key Number | Item Description | Number Required |
|---|---|---|
| 1 | Spring Guide | 1 |
| 2 | Spring | 1 |
| 3, 4, 5, 6 | Hanger bolt and nut assembly | 1 |
| 7 | Handle | 1 |
| 8 | Spring pin bushing | 1 |
| 9 | Hanger | 1 |
| 10, 11 | Spring pin with cotter | 1 |
| 12, 13 | Jaw bolt and nut | 1 |
| 14 | Insert key spring | 4 |
| 15 | Insert key | 4 |
| 16 | blank insert | 2 |
| 17 | Insert | 2 |
| 18 | Master link | 1 |
| 19 | Master Link chain pin | 1 |
| 20, 21 | Splice bolt and nut | as required |
| 22 | Special chain only | 1 |
| 23 | Chain screw pin | 1 |
| 24 | Chain screw | 1 |
| 25 | Jaw | 1 |
| 26 | Master link handle pin | 1 |
| 27 | Chain screw nut | 1 |
NOTE: Parts and/or number required may vary slightly among sizes. Please call for details.
